1 · Overview

Arus is a citizen-facing Malaysian flood coordination drill. The player acts as Datuk Nadia, NADMA's liaison officer, during the 2021 Klang Valley floods. Eight incoming calls arrive over seven minutes; four gauges — lives saved, assets spent, inter-agency trust, time remaining — respond to every choice.

Three modes share the same simulation core:

The core simulation engine (backend/game/engine.py) is deterministic and off-loop — no LLM is called inside the tick loop. Gemini 2.5 Pro is invoked only at two boundaries: the opening narrator briefing (backend/services/narrator.py) and the end-of-session debrief commentary.

2 · Architecture — one engine, three lenses

React/R3F client → FastAPI on Cloud Run → deterministic GridWorld engine → Gemini 2.5 Pro (boundary only) ; ADK agents (COACH/AUTO) query MCP fleet tools at runtime

Request flow — PLAY mode

React UI ─────► POST /api/game/start      (creates session, fetches intro via Gemini)
          ◄───── session_id, scenario, intro.{en,bm}, live_warnings[]

React UI ─────► GET /api/game/state        (polled every ~3s)
          ◄───── gauges, current_card, status

React UI ─────► POST /api/game/choose     {card_id, option_id}
          ◄───── deltas, flavor.{en,bm}, assigned_drone, degraded

          ... (repeat for 8 cards)

React UI ─────► GET /api/game/debrief
          ◄───── grade, real_event, commentary, extension_links

Request flow — WATCH AI (AUTO)

Client starts session with mode=AUTO.
FastAPI boots a SequentialAgent pipeline:
  Assess      → reads fleet state via MCP tools
  Strategise  → ranks options with bilingual rationale
  Dispatch    → calls fleet.dispatch via MCP
  Analyse     → reads resulting deltas via fleet.status
  Brief       → writes BM + EN agency_brief.md

WebSocket pushes a 5-stage progress bar in real time.

3 · Engine internals

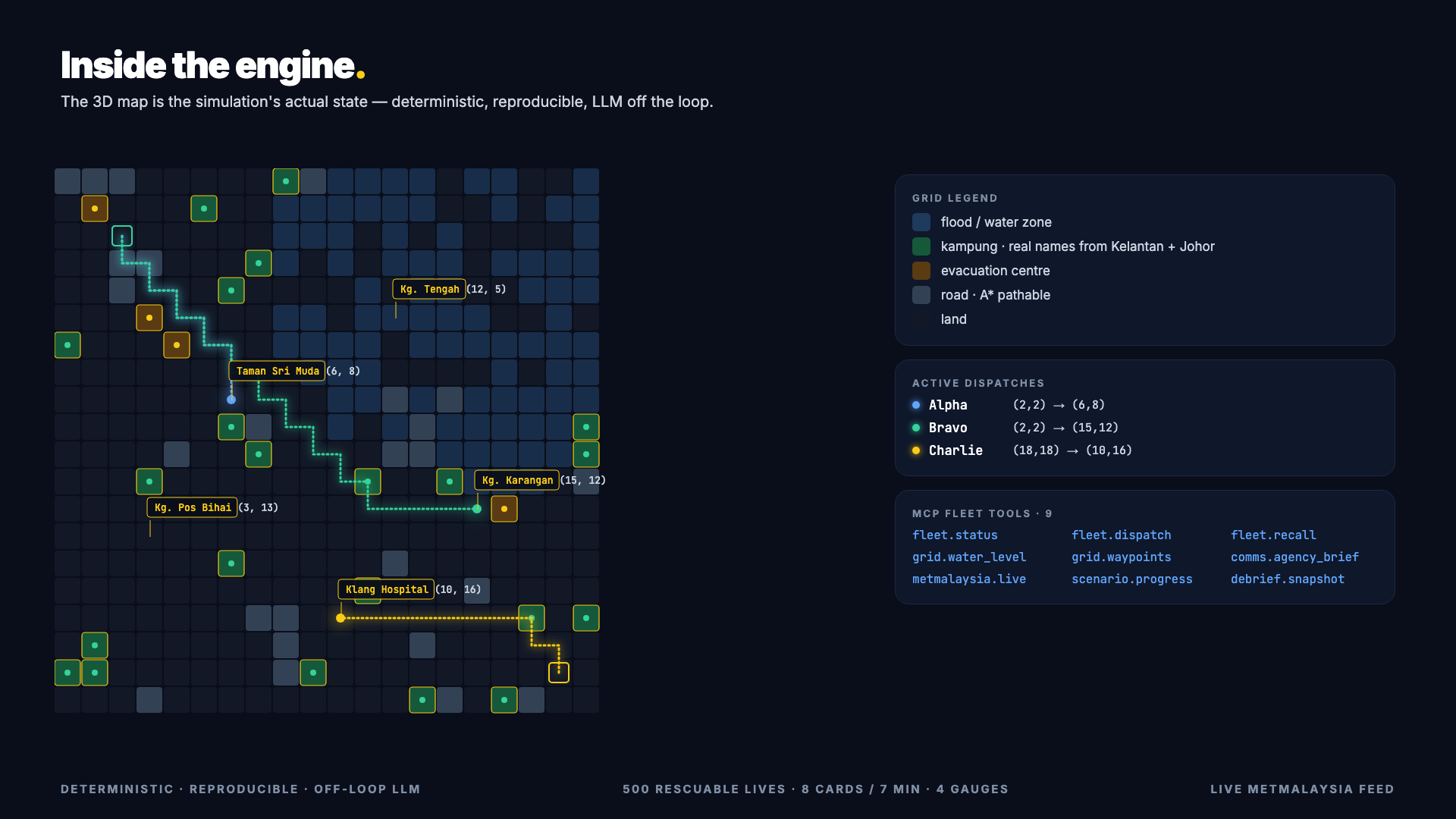

20×20 grid · terrain cells typed {water, road, kampung, evac, land} · three drones with A* paths to real kampung coordinates

4 · API reference

Base URL: https://arus-1030181742799.asia-southeast1.run.app

Example — complete round in curl

# 1. Start session
curl -s -X POST https://arus-1030181742799.asia-southeast1.run.app/api/game/start \
     -H 'Content-Type: application/json' \
     -d '{"scenario_id":"shah_alam_hard","locale":"en"}'

# 2. Wait 3s, fetch first card
curl -s https://arus-1030181742799.asia-southeast1.run.app/api/game/state

# 3. Pick first option on the current card
curl -s -X POST https://arus-1030181742799.asia-southeast1.run.app/api/game/choose \
     -H 'Content-Type: application/json' \
     -d '{"card_id":"c01_sri_muda","option_id":"send_bomba_now"}'

# 4. Repeat for the other 7 cards

# 5. Fetch debrief with real-event comparison
curl -s https://arus-1030181742799.asia-southeast1.run.app/api/game/debrief

Response shape — /choose

{
  "status": "ok",
  "data": {
    "ok": true,
    "card_id": "c01_sri_muda",
    "option_id": "send_bomba_now",
    "deltas": { "saved": 6, "assets": -22, "trust": 8 },
    "gauges": { "saved": 10, "assets": 78.0, "trust": 100, "time_remaining": 414.2 },
    "assigned_drone": "Alpha",
    "agency": "BOMBA",
    "degraded": false,
    "flavor": {
      "en": "Swift-water team mobilising. Sri Muda takes first priority.",
      "bm": "Pasukan penyelamat mara dengan bot penyelamat. Sri Muda mendapat keutamaan pertama."
    }
  }
}

5 · MCP fleet tools

Nine tools exposed on a fastmcp server at port 8001. Both agent modes discover tools at runtime via tools/list_changed — no hard-coded drone IDs or fleet constants in agent code.

6 · Scenario format

Scenarios live in backend/game/cards.yaml. One scenario = metadata block + 8 card definitions. Each card has a coordinate on the grid, bilingual body, and 2-3 options with deterministic deltas.

shah_alam_hard:
  name_en: "Klang Valley Floods 2021 — Hard Mode"
  name_bm: "Banjir Lembah Klang 2021 — Mod Sukar"
  target_saved: 22
  duration_seconds: 420
  cards:
    - id: c01_sri_muda
      tick: 5
      title_en: "Incoming: Taman Sri Muda"
      body_en: "Water at chest level. 60+ residents on rooftops. 3 elderly cannot climb up."
      coord: [6, 8]
      options:
        - id: send_bomba_now
          label_en: "Deploy BOMBA immediately (ETA 25 min)"
          agency: BOMBA
          deltas: { saved: 6, assets: -22, trust: 8 }
        - id: ask_mmea_boats
          label_en: "Request MMEA boats (ETA 15 min, off their remit)"
          agency: MMEA
          deltas: { saved: 6, assets: -15, trust: -12 }
        - id: log_only
          label_en: "Log only — no asset available"
          deltas: { saved: 0, assets: 0, trust: -8 }

7 · ADK agents

COACH — 2-stage LlmAgent

Both stages use Gemini 2.5 Pro with structured output schemas. The Recommender's output shape dictates the ghost-drone coordinate overlaid on the 3D map.

from google.adk.agents import SequentialAgent, LlmAgent
from .prompts import ASSESSOR_PROMPT, RECOMMENDER_PROMPT
from .schemas import AssessorOutput, RecommenderOutput

coach_assessor = LlmAgent(
    model="gemini-2.5-pro",
    instruction=ASSESSOR_PROMPT,
    output_schema=AssessorOutput,
    tools=mcp_tools,    # 9 fleet tools auto-discovered
)

coach_recommender = LlmAgent(
    model="gemini-2.5-pro",
    instruction=RECOMMENDER_PROMPT,
    output_schema=RecommenderOutput,
)

coach = SequentialAgent(sub_agents=[coach_assessor, coach_recommender])

WATCH AI — 5-stage SequentialAgent

auto = SequentialAgent(sub_agents=[
    assess,       # reads fleet state
    strategise,   # ranks options with bilingual rationale
    dispatch,     # calls fleet.dispatch
    analyse,      # reads deltas from fleet.status
    brief,        # writes bilingual agency brief
])

8 · Gemini narrator

One call at session start, one call at debrief. Both use gemini-2.5-pro with structured responseSchema so downstream code can rely on {en, bm} fields without parsing prose.

def build_narrator_intro(scenario: Scenario) -> dict:
    """Gemini 2.5 Pro writes a dispatcher briefing in BM + EN."""
    client = genai.Client(api_key=os.environ["GEMINI_KEY"])
    resp = client.models.generate_content(
        model="gemini-2.5-pro",
        config=GenerateContentConfig(
            temperature=0.4,
            response_schema=NADMA_INTRO_SCHEMA,
        ),
        contents=_NADMA_INTRO_TEMPLATE.format(name=scenario.name_en),
    )
    return {"en": resp.en, "bm": resp.bm}

9 · Run locally

Requirements

• Python 3.12+
• Node 20+ (frontend)
• A Gemini API key (AI Studio)

# backend
cd backend
python3 -m venv .venv && source .venv/bin/activate
pip install -r requirements.txt
export GEMINI_KEY="AIza..."
uvicorn main:app --reload --host 0.0.0.0 --port 8000 &

# MCP server (in a separate shell)
python -m backend.mcp_server --port 8001 &

# frontend
cd ../frontend
npm i && npm run dev     # → http://localhost:5173

10 · Cloud Run deployment

# one command, multi-stage Dockerfile included
gcloud builds submit --config=cloudbuild.yaml --project=myai-hackathon
gcloud run deploy arus \
  --image=asia-southeast1-docker.pkg.dev/myai-hackathon/arus/arus:latest \
  --region=asia-southeast1 --platform=managed \
  --allow-unauthenticated \
  --set-secrets=GEMINI_KEY=arus-gemini-key:latest

Live at arus-1030181742799.asia-southeast1.run.app.

11 · File structure

arus/
├── backend/
│   ├── main.py                      # FastAPI + WS + game-tick loop
│   ├── core/
│   │   ├── grid_world.py            # 20×20 typed grid + water spread
│   │   ├── uav.py  ·  drone.py
│   │   ├── pathplanner.py           # A*
│   │   ├── terrain.py  ·  objective.py
│   │   └── locality.py              # grid → real kampung names
│   ├── game/
│   │   ├── engine.py                # deterministic tick loop
│   │   ├── scenario.py              # YAML loader + real-stats
│   │   ├── score.py                 # gauge math + grade
│   │   ├── cards.yaml               # 8-card Shah Alam scenario
│   │   └── real_stats.json          # 2021 ground truth
│   ├── agents/
│   │   ├── coach.py                 # 2-stage ADK LlmAgent
│   │   ├── auto.py                  # 5-stage SequentialAgent
│   │   └── prompts.yaml
│   ├── routes/
│   │   └── game.py                  # /api/game/{start,choose,state,debrief}
│   └── services/
│       ├── narrator.py              # Gemini BM+EN intro + debrief
│       ├── vision.py                # Gemini Vision bonus
│       └── met_feed.py              # MetMalaysia live warnings
├── frontend/src/
│   ├── scene/                       # R3F 3D tactical map
│   ├── panels/GlobalStatusBar.jsx
│   ├── components/                  # StartScreen, EventCard, GaugePanel, Debrief
│   ├── hooks/                       # useWebSocket + useGameApi
│   └── stores/missionStore.js       # Zustand world + game state
├── docs/FOR-JUDGES.md
├── Dockerfile  ·  cloudbuild.yaml
├── requirements.txt
└── README.md

12 · Roadmap — after the hackathon
